Installing left air guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert the air guide -B- into the heating/air-conditioning unit and check that it is secure.

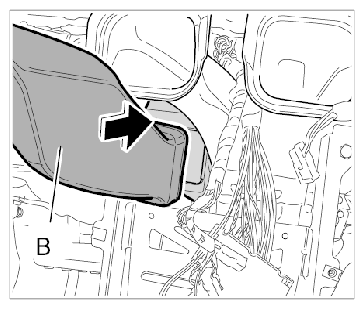

Fig 1: Inserting Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install the dashboard if necessary. → Installing instrument panel
Slide the air guide -A- into the air guide slot -B- and engage air guide -A- at the mounting bracket.

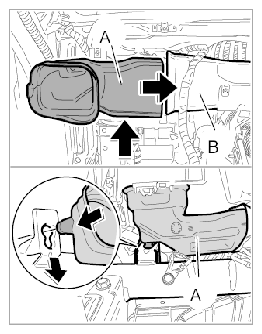

Fig 2: Engaging Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
