Removing Heater/Fresh-Air Blower Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Set blower to position 0 on climate control and remove ignition key.

Unscrew the two fastening screws -1- of support strut and remove support strut.

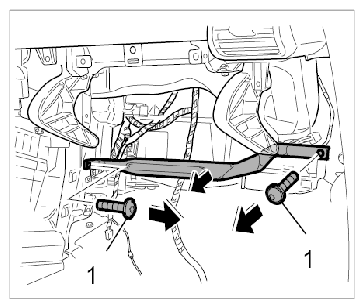

Fig 1: Removing Support Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Squeeze the plug -a- on the blower motor and pull off.

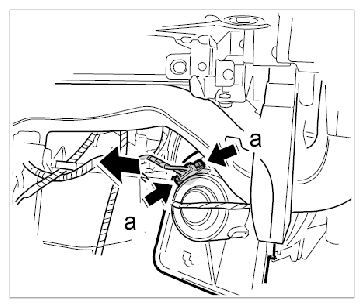

Fig 2: Squeezing Plug -A- On Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the two fastening screws -2- holding the blower motor cover.

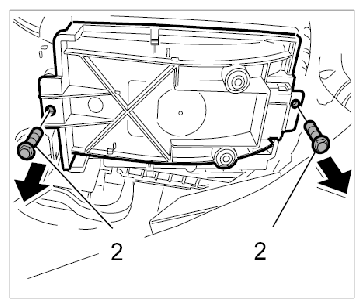

Fig 3: Removing Blower Motor Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the cover -3- for the blower motor and pull out the blower motor downwards.

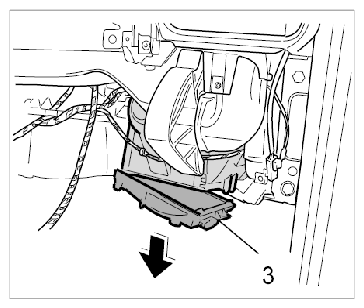

Fig 4: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
