Installing Heater/Fresh-Air Blower Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

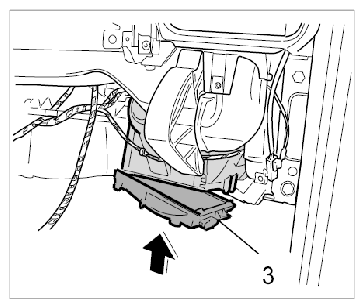

Insert the heater/fresh-air blower motor from below into the heater/A/C unit and position the cover -3- .

Fig 1: Inserting Heater/A/C Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

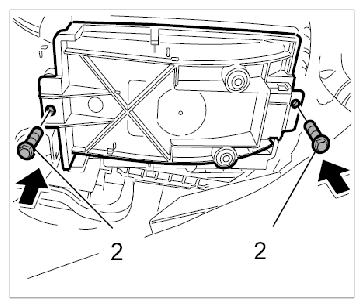

Secure cover -3- with the two fastening screws.

Fig 2: Locating Secure Cover Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

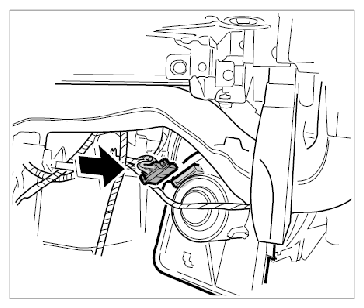

Insert the electrical plug connection until the plug can be felt to engage.

Fig 3: Locating Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

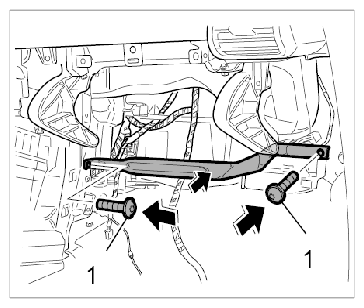

Install support strut and tighten with the two fastening screws -1- .

Fig 4: Locating Support Strut And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition and the blower in stages on the heating and fresh-air control. Check the function of the blower.
