Installing Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check condition of Velcro strip -1-  on the body and on the cover; replace if necessary.

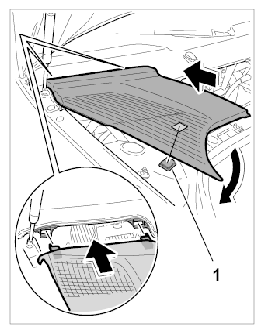

    Fig 1: Install Cover
    G09830185Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage cover in cowl panel cover, lift rubber lip of luggage compartment seal to one side and press the cover onto the Velcro strip -1-  .
