Filling Coolant (Includes Bleeding)

Information

• Only use Genuine Porsche coolant.
• Never mix coolant with other coolants.

Information

The process of filling and bleeding the cooling system is performed using the special tool filling device 9696  .

Information

• If no vacuum is built up, there is a leak in the cooling system or the connection pressure is too low.
• Deformation of the rubber hoses in the cooling system is normal.
• When the pressure gauge pointer is in the green area of the display scale, a sufficient vacuum has been built up.
• If both shut-off valves are closed and the compressed air supply is disconnected, the vacuum must not drop.
• If the vacuum drops within approx. 30 seconds, there is a leak in the cooling system.

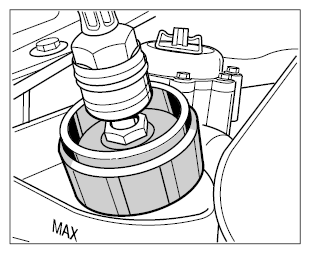

1. Screw cap adapter for coolant expansion tank (K22) onto the tank and attach the flexible extension (Fz 100) to the cap.
   Fig 1: Identifying Coolant Expansion Tank Adapter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect the vacuum pressure gauge of the bleeder tool to the flexible extension. When doing so, ensure that both shut-off valves are closed (positioned at 90° to flow direction).
3. Connect the Venturi nozzle to the vacuum pressure gauge.

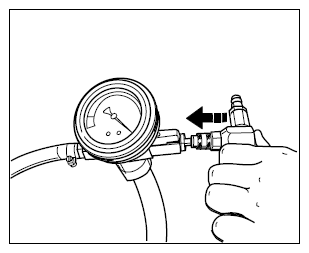

   Fig 2: Connecting Venturi Nozzle On Vacuum Pressure Gauge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The quantity of coolant available should exceed the amount required to fill the system by about two liters in order to prevent air being sucked in.
   • An antifreeze content of -35 °C corresponds to a mixture of 50:50 (coolant: water).
4. Place a canister with a sufficient amount of coolant and with an antifreeze content of -35 °C behind the vehicle close to the expansion tank.

   Information

   • The bleeding process is completed more quickly if the canister is positioned at the same height as the coolant reservoir.
5. Push the filler hose of the vacuum pressure gauge -5-  onto the canister connection. Draw off the return line -6-  of the Venturi nozzle into a second empty container.

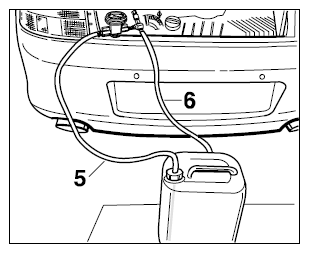

   Fig 3: Identifying Special Canister Filling Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • A hissing sound after connecting the compressed air supply is normal.
6. Connect the compressed air supply to the Venturi nozzle.

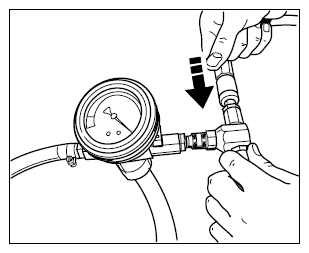

   Fig 4: Connecting Compressed Air Supply On Venturi Nozzle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Open both shut-off valves on the vacuum pressure gauge until the transparent filler hose has completely filled with coolant.

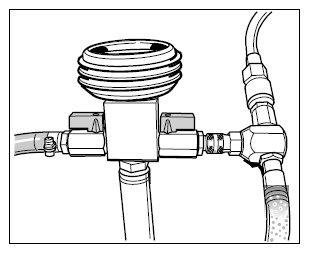

   Fig 5: Identifying Shut-Off Valves

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Close left shut-off valve on the vacuum pressure gauge and allow a vacuum to build up in the coolant circuit.

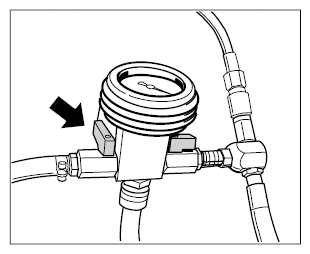

   Fig 6: Locating Left-Hand Shut-Off Valve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. When there is enough vacuum in the cooling system (pointer is in the green area), close the right shut-off valve and then unplug the compressed air supply.

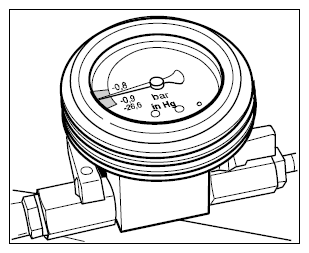

   Fig 7: Identifying Vacuum Gauge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Open the left shut-off valve on the vacuum pressure gauge (right-hand valve closed -arrow-  ). The cooling system is then filled.

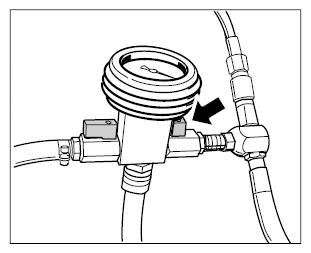

    Fig 8: Locating Shut-Off Valve

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. When the cooling system no longer contains a vacuum (vacuum pressure gauge shows zero), i.e. no more coolant is being sucked out of the canister, open the right-hand shut-off valve.
12. Then, remove the filling device.
13. If necessary, fill the coolant expansion tank with coolant up to the maximum marking and screw on the cap -1-  of the expansion tank (do not tilt).

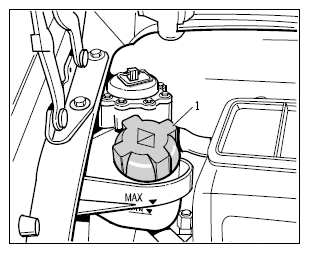

    Fig 9: Identifying Coolant Expansion Tank Cap

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
