Removing Bracket

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Have a cloth ready to soak up drops of oil.

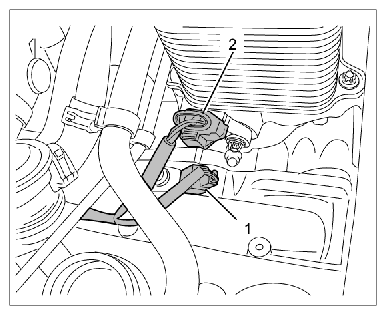

Pull off cable plug on knock sensor -1- and oil pressure sensor -2- .

Fig 1: Identifying Knock Sensor And Oil Pressure Sensor Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil/water heat exchanger.
1. 3.1. Disconnect vent line at the heat exchanger by opening the hose clamp.
2. 3.2. Unscrew four external Torx screws (M6 x 16) and remove the heat exchanger using a cloth.
3. 3.3. Replace O-rings and clean sealing surfaces.
Unscrew four fastening screws (M6 x 20) for the bracket.
Remove screws for oil-filter console support.

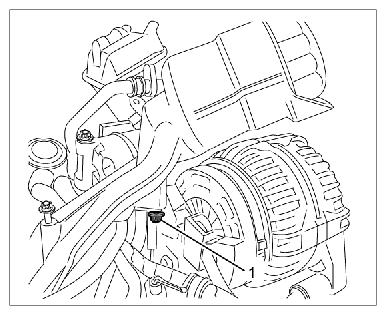

1. 5.1. Unscrew external Torx screw (M6 x 16) on the rear holder.

  Fig 2: Identifying Rear Holder Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

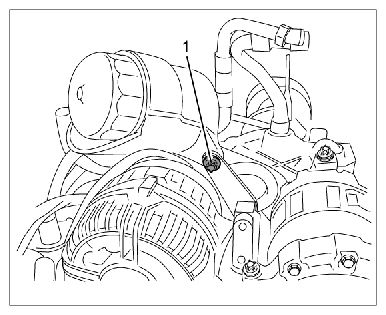

2. 5.2. Unscrew fastening screw (M6 x 12) -1- on the lower oil pipe.

  Fig 3: Identifying Oil Pipe Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove coolant hoses at the left and right.

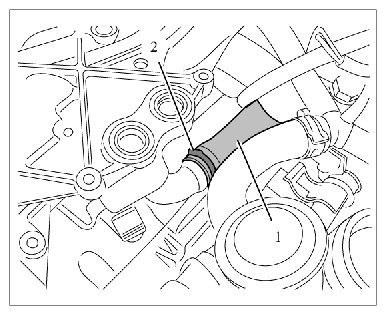

1. 6.1. Loosen screw-type clamp -2- and pull off coolant hose -1- at the left.

  Fig 4: Identifying Left Oil Module Coolant Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

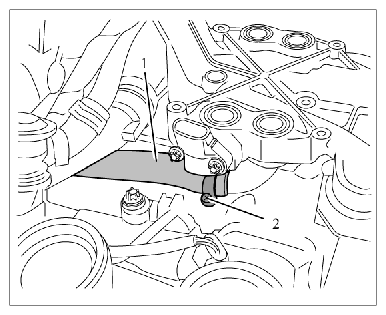

2. 6.2. Loosen screw-type clamp -2- and pull off coolant hose -1- at the right.

  Fig 5: Identifying Right Oil Module Coolant Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully clean sealing surfaces and connection piece for oil module on the crankcase.

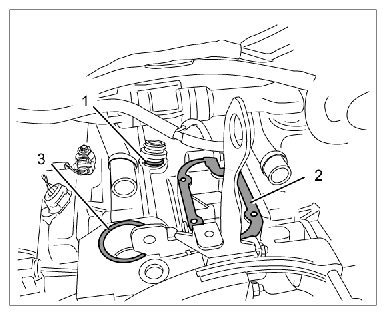

1. 7.1. Replace seal -2- and O-rings -1 and 3- .

  Fig 6: Identifying Oil Module Sealing Surfaces And Connection Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

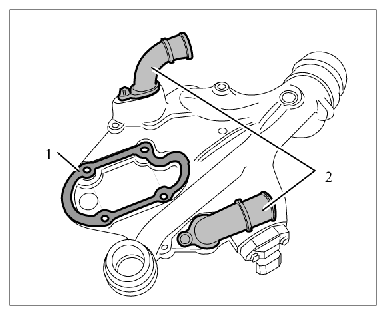

Carefully clean sealing surfaces -1- and connection piece -2- on oil module.

Fig 7: Identifying Oil Module Sealing Surfaces And Connection Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

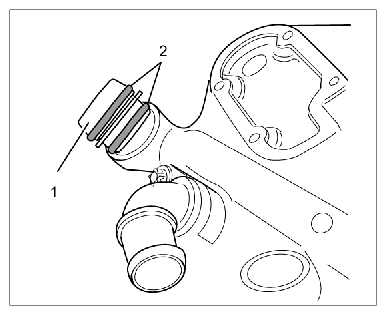

Replace O-rings -2- on connection piece -1- for crankcase and clean sealing surfaces.

Fig 8: Identifying Connection Piece Between Oil Module And Crankcase
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
