WM 175019 Removing And Installing Oil Pan (All Models): Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

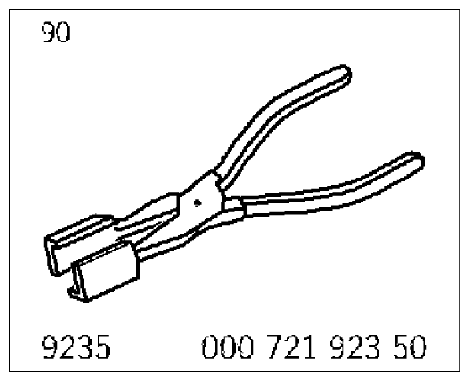

| relay puller | Special tool | 9235 | ||

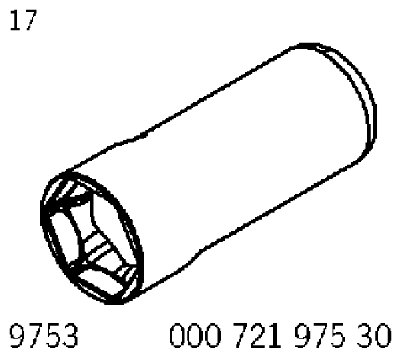

| socket-wrench insert | Special tool | 9753 | ||

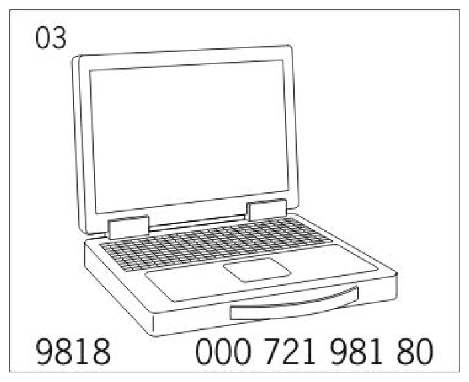

| PIWIS Tester II | Special tool | 9818 |
TECHNICAL VALUES SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Upper part of oil pan to crankcase | Re-tighten screws 1-4 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Oil pressure control valve | Cap screw, M36 x 1.0 x 12 | Tightening torque | 40 Nm (30 ft. lb.) | ||
| Suction tube | M6 x 25 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Oil deflector and air/oil separator | M6 x 20 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Oil pressure pipe | M6 x 16 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Lower part of oil pan to upper part | M6 x 25 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Coolant guide to crankcase and coolant pump | External Torx screw (E10), M6 x 25 | Tightening torque | 13 Nm (9.5 ft. lb.) |
