Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install coolant guide -1- .
1. 1.1. Fit and tighten six external Torx screws (E10, M6 x 25) -2- uniformly.
  → Tightening torque: 13 Nm (9.5 ft. lb.)

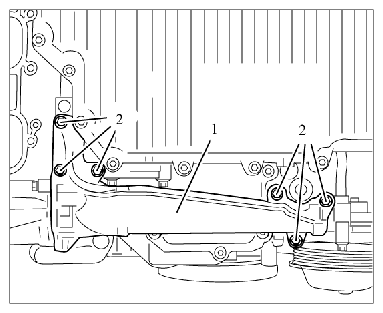

  Fig 1: Identifying Lower Coolant Guide
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill in coolant and bleed the cooling system.
→ 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING THE SYSTEM) .
Fill in engine oil.
→ 170155 CHANGING ENGINE OIL AND OIL FILTER .
Start the engine and let it heat up until the operating temperature is reached (oil temperature is at least 80° C). The oil temperature and oil pressure can be checked using PIWIS Tester II 9818 .
1. 4.1. Inspect the oil pan for leaks.
2. 4.2. Check oil level.
  → 170101 CHECKING ENGINE-OIL LEVEL .
3. 4.3. Check oil pressure.
  → 170301 CHECKING OIL PRESSURE .
