Removing Oil Pan (Lower Part)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Remove lower part of oil pan.
1. 1.1. Unscrew 23 inner Torx screws (T30) M6 x 25.

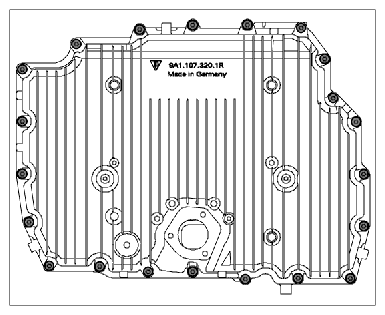

  Fig 1: Identifying Lower Part Of Oil Pan Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the oil pan.
1. 2.1. Check molded seal and replace it if necessary. Replace O-rings on the sprue cones.

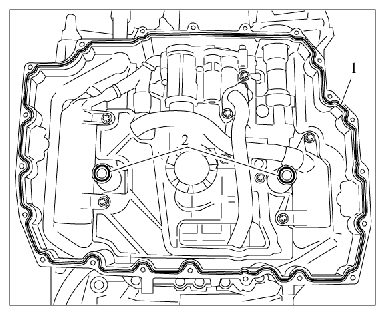

  Fig 2: Identifying Oil Pan Molded Seal And O-Rings
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean and degrease sealing faces (using solvent naphtha or metal cleaner for example). Allow parts to dry off well.
