Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Drain engine oil.
→ 170155 CHANGING ENGINE OIL AND OIL FILTER .
Drain coolant.
→ 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING THE SYSTEM) .

Information
- Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
Remove coolant guide -1- for the coolant pump.
1. 3.1. Unscrew six external Torx screws (E10, M6 x 25) -2- and remove coolant guide.
2. 3.2. Collect the remaining emerging coolant.
3. 3.3. Clean molded seals and coat with Kluberplus Gel.
  Only replace molded seals if they are damaged.

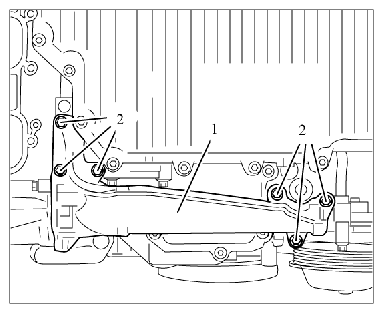

  Fig 1: Identifying Lower Coolant Guide
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
