Installing Oil Pan (Lower Part)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit molded seal on the upper part of the oil pan and fit O-rings on the sprue cones.

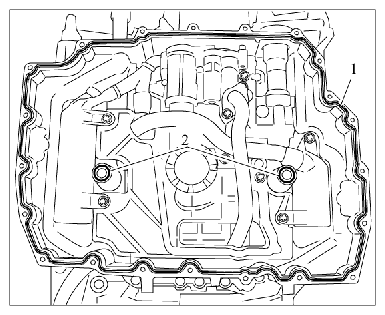

Fig 1: Identifying Oil Pan Molded Seal And O-Rings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit lower part of oil pan.
1. 2.1. Fit lower part of oil pan and check that the seal is seated correctly.
2. 2.2. Screw in 23 internal Torx screws (T30) M6 x 25.
3. 2.3. Screw in and tighten screws evenly according to tightening specifications → Lower part of oil pan . Screws 1, 2, 5 and 6 must be re-tightened.
  → Tightening torque: 13 Nm (9.5 ft. lb.)

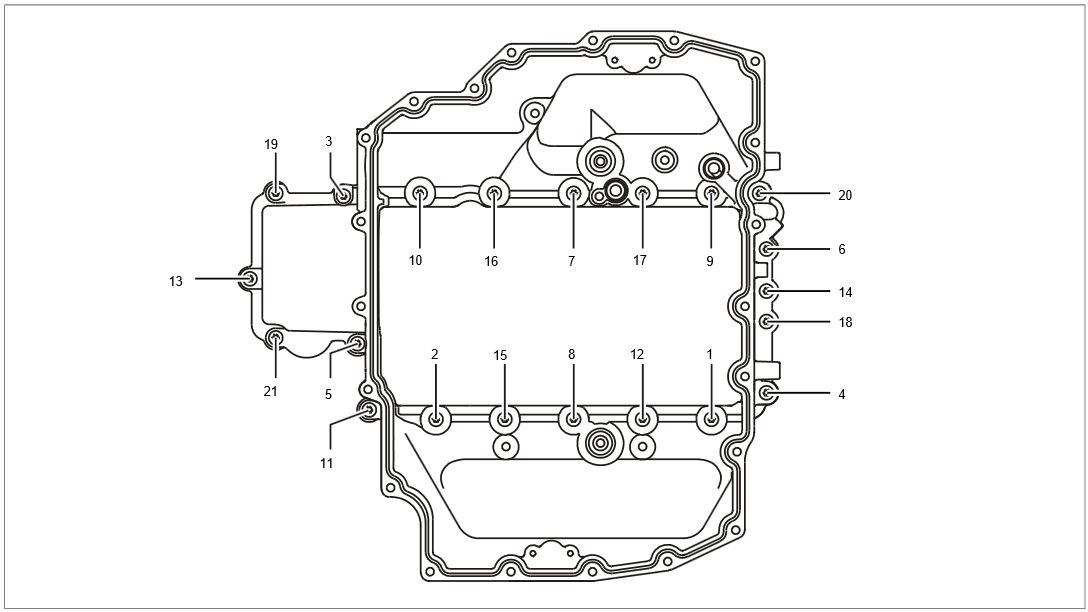

  Fig 2: Identifying Lower Oil Pan Screw Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
