WM 174019 Removing And Installing Oil/Water Heat EXCHANGER (Turbo Coupe & Turbo CABRIO): Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

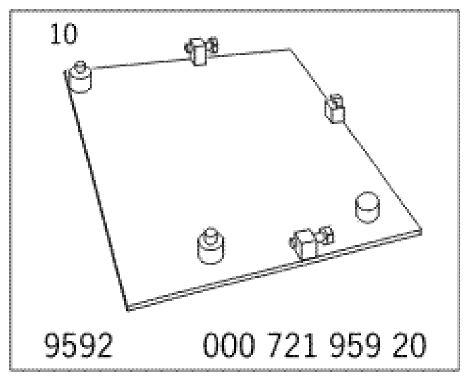

| retainer plate | Special tool | 9592 |
TECHNICAL VALUES SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Oil/water heat exchanger to bracket | M6 | Tightening torque | 10 Nm (7.5 ft. lb.) | ||
| Small oil/water heat exchanger to bracket | screw M6 | Tightening torque | 10 Nm (7.5 ft. lb.) | ||
| Collar nut to engine mounting | M12 | Tightening torque | 85 Nm (63 ft. lb.) |
