Removing Small Oil/Water Heat Exchanger

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Oil and coolant will flow out when the oil/water heat exchanger is removed.

Place a cloth underneath the heat exchanger and cover the generator to prevent contamination and subsequent damage to engine components.

Remove cycle valve for active carbon filter.
1. 1.1. Pull off cable plug -3- and vacuum line -2- . Pull cycle valve for active carbon filter -1- out of the bracket and remove it.

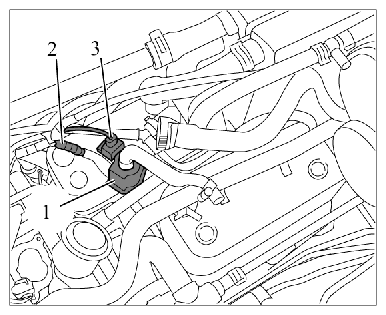

  Fig 1: Removing/Installing Cycle Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect lines from the oil/water heat exchanger.
1. 2.1. Disconnect oil breather hose -2- from the oil tank.

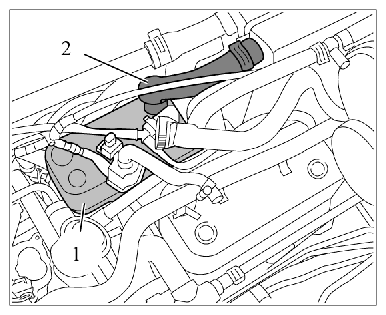

  Fig 2: Identifying Oil Breather Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Pull off coolant vent lines -1- from the oil/water heat exchanger.

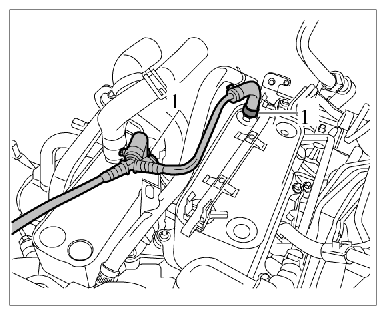

  Fig 3: Identifying Vent Lines On Oil/Water Heat Exchanger
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

Oil and coolant will flow out when the oil/water heat exchanger is removed.

Place a cloth underneath the heat exchanger and cover the generator to prevent contamination and subsequent damage to engine components.
Remove oil/water heat exchanger.
1. 3.1. Unscrew screws -1- and remove oil/water heat exchanger -2- .

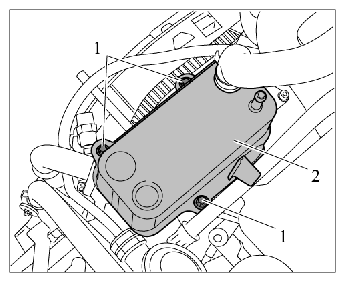

  Fig 4: Identifying Small Oil/Water Heat Exchanger
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
