Removing Oil Pressure Control Valve: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Removing valve

Release and pull off cable plug -2- .

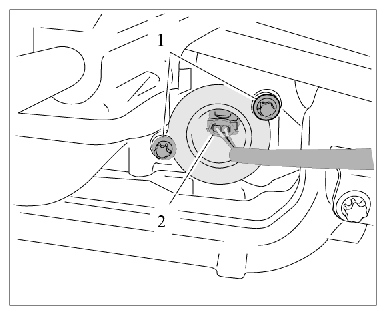

Fig 1: Identifying Oil Pressure Control Valve Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove flange for oil pressure control valve.
1. 2.1. Unscrew two external Torx screws (M6 x 20) -1- .

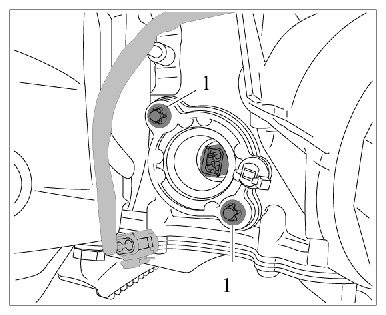

  Fig 2: Identifying Oil Pressure Control Valve Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Pull off flange.
Remove oil pressure control valve.
1. 3.1. Loosen and remove union nut (M36 x 1 x 12) on the oil pressure control valve using the special tool Socket-Wrench Insert 9753 .

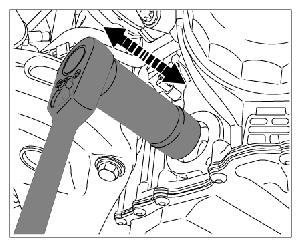

  Fig 3: Removing Oil Pressure Control Valve Using Special Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Carefully pull out the oil pressure control valve using the special tool Relay Puller 9235 .

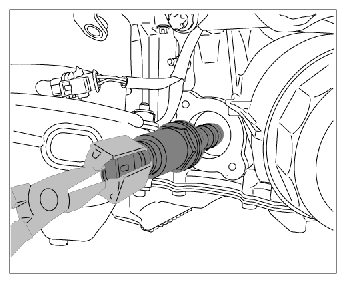

  Fig 4: Pulling Oil Pressure Control Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
