Installing Oil Pressure Control Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace and grease all O-rings.
1. 1.1. Grease new O-rings with "Kluber Syntheso Glep" grease (Porsche Part No. 000.043.204.68) and fit them.
Fit a new O-ring on the flange for the oil pressure control valve.
Install oil pressure control valve.

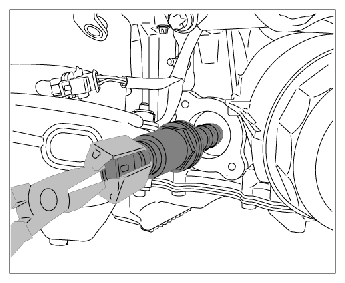

1. 3.1. Carefully insert the oil pressure control valve into the oil pan using special tool Relay Puller 9235 .

  Fig 1: Installing Oil Pressure Control Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

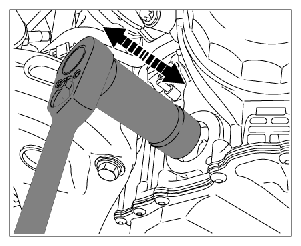

2. 3.2. Fit and tighten union nut (M36 x 1 x 12) using special tool Socket-Wrench Insert 9753 .
  → Tightening torque: 40 Nm (30 ft. lb.)

  Fig 2: Tightening Union Nut Using Special Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install flange for oil pressure control valve.

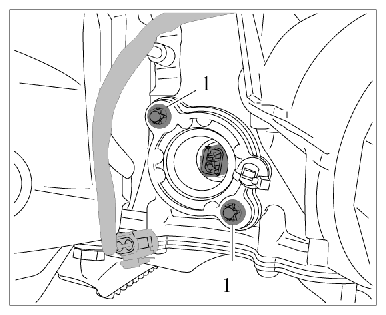

Fig 3: Identifying Oil Pressure Control Valve Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Fit the flange.
2. 4.2. Fit and tighten two external Torx screws (M6 x 20) -1- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

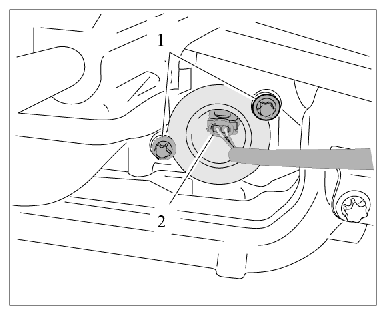

Push on and engage the cable plug -2- .

Fig 4: Identifying Oil Pressure Control Valve Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
