WM 172619 Removing And Installing Oil Pressure Control Valve (Except Gt2 & Gt3): Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

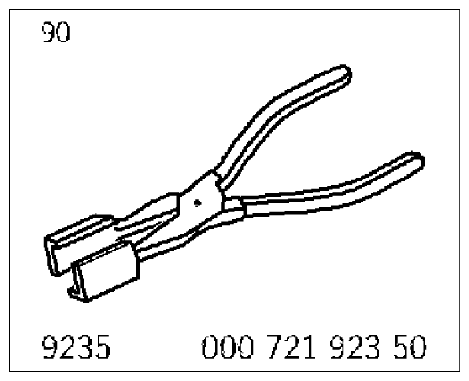

| relay puller | Special tool | 9235 | ||

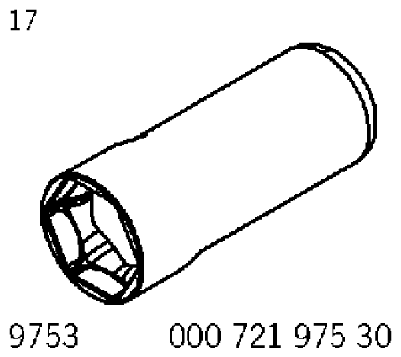

| socket wrench insert | Special tool | 9753 |
TECHNICAL VALUES SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Union nut on oil pressure control valve | M36 x 1 x 12 | Tightening torque | 40 Nm (30 ft. lb.) | ||
| External Torx screws for flange for oil pressure control valve | M6 x 20 | Tightening torque | 10 Nm (7.5 ft. lb.) |
