Installing Oil Pressure Control Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace and grease all O-rings.
1. 1.1. Grease new O-rings with "Kluber Syntheso Glep" grease (Porsche Part No. 000.043.204.68) and fit them.
Replace O-ring on flange for the oil pressure control valve.
Install oil pressure control valve.
1. 3.1. Carefully insert the oil pressure control valve in the installation position using the special tool Relay Puller 9235 .

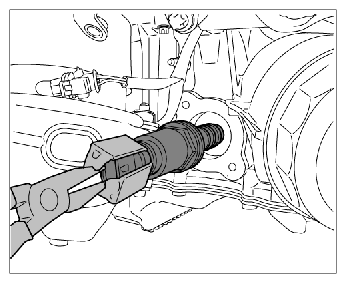

  Fig 1: Installing Oil Pressure Control Value
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Tighten union nut (M36 x 1 x 12) on the oil pressure control valve using the special tool Socket-Wrench Insert 9753 .
  → Tightening torque: 40 Nm (30 ft. lb.)

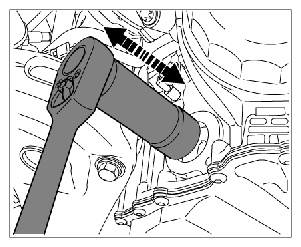

  Fig 2: Tightening Oil Pressure Control Valve Using Special Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install flange for oil pressure control valve.
1. 4.1. Fit the flange.
2. 4.2. Fit and tighten two external Torx screws -1- (M6 x 20).
  → Tightening torque: 10 Nm (7.5 ft. lb.)

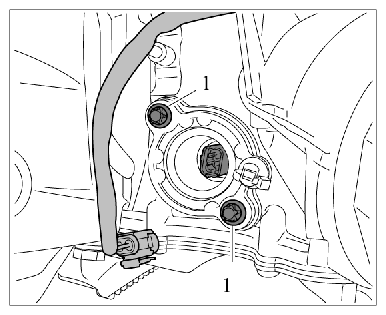

Fig 3: Identifying Oil Pressure Control Valve Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert and lock cable plug -2- .

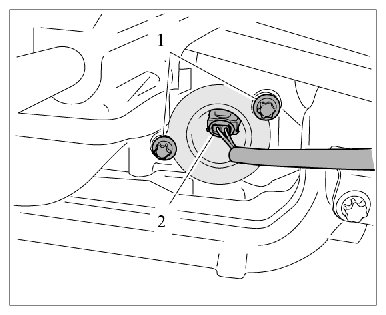

Fig 4: Identifying Oil Pressure Control Valve Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
