Component Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

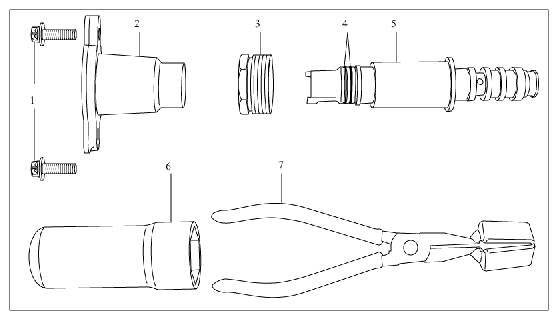

Fig 1: Identifying Oil Pressure Control Valve And Tools
G09822074Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. External Torx screws (M6 x 20)
  2. Flange for oil pressure control valve
  3. Union nut (M36 x 1 x 12) for oil pressure control valve
  4. O-rings on oil pressure control valve
  5. Oil pressure regulating valve
  6. Special tool Socket Wrench Insert 9753
  7. Special tool Relay Puller 9235
