Removing Oil Guide (Oil Plate)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil guide -1-  .
    1. 1.1. Unscrew six outer Torx screws (E10) M6 x 20 -2-  and remove the component (slide towards belt side and lift up and off).

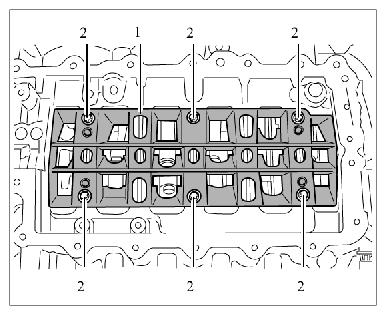

      Fig 1: Identifying Crankcase Oil Guide
      G09822067Courtesy of PORSCHE CARS NORTH AMERICA, INC.
