Installing Oil Guide (Oil Plate)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit the oil guide -1- and secure in place with six outer Torx screws (E10) M6 x 20 -2- .

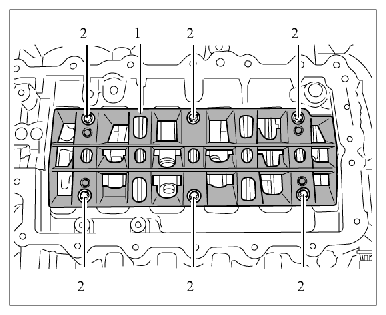

Fig 1: Identifying Crankcase Oil Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1.1. Tighten screws evenly from the inside out.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
