Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

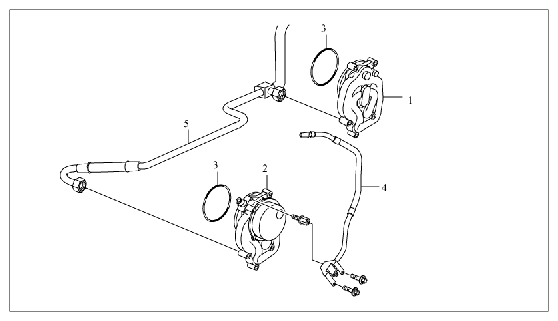

Fig 1: Overview Of Oil Suction And Tandem Pumps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item	Designation	Explanation
1	Oil suction pump, cylinder bank 4-6	Replace O-rings
2	Tandem pump, cylinder bank 1-3	Replace O-rings
3	O-ring	Replace
4	Vacuum line	Replace O-rings
5	Oil return line
