Installing Oil Filler Neck

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing face.
Grease and fit new O-ring with "Kluber Syntheso Glep" grease (Porsche Part No. 000.043.204.68).
Install oil filler neck in the crankcase.
Fit and tighten oil filler neck using two external Torx screws (E10, M6 x 20) -1- on the crankcase.
→ Tightening torque: 13 Nm (9.5 ft. lb.)

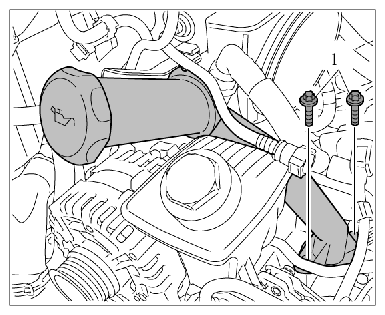

Fig 1: Identifying Oil Filler Neck Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure oil filler neck on the holder at the top.
1. 5.1. Fit and tighten two external Torx screws (E10, M6 x 12) -2- .
  → Tightening torque: 13 Nm (9.5 ft. lb.)
2. 5.2. Connect crankcase vent line -3- .

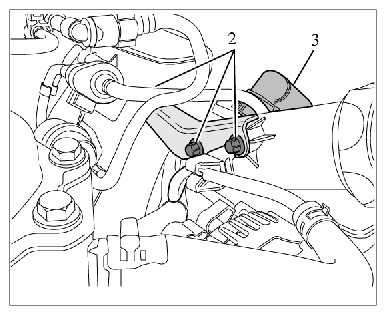

Fig 2: Identifying Oil Filler Neck Holder Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
