Installing Oil Filler Neck

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install oil-level sender.
1. 1.1. Install oil filler neck.
  Replace sealing ring. Insert oil filler neck -5- into the oil tank flange.
2. 1.2. Insert oil-level sender -1- , fit and tighten screws -2 and 6- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
3. 1.3. Connect cable plug to oil-level sender -1- .

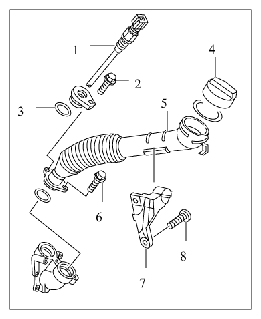

  Fig 1: Identifying Removing/Installing Components Of Oil Filler Neck
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
