Removing Oil-Level Sender

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil-level sender.
    1. 1.1. Pull off cable plug.
    2. 1.2. Unscrew screw -2-  and pull out oil-level sender -1-  .

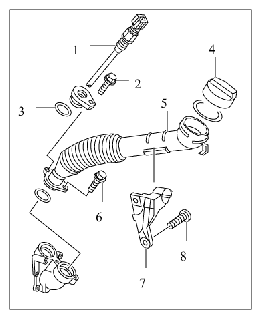

      Fig 1: Identifying Removing/Installing Components Of Oil Filler Neck
      G09822019Courtesy of PORSCHE CARS NORTH AMERICA, INC.
