Removing Oil-Pressure Sender

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil-pressure sender.
1. 1.1. Pull cable plug -1- off the oil-pressure sender.

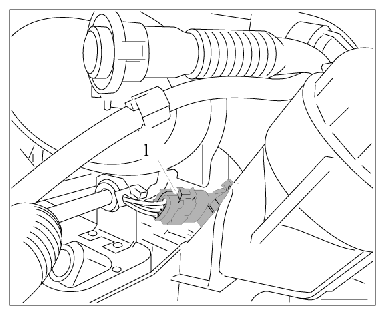

  Fig 1: Identifying Oil-Pressure Sender Cable Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Unscrew two external Torx screws (E10, M6 x 20) -3- and remove the oil-pressure sender -2- .

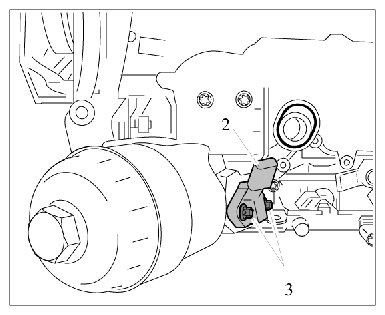

  Fig 2: Identifying Oil-Pressure Sender
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Replace O-ring.
