Installing Oil-Pressure Sender

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace O-ring on oil-pressure sender.
Grease and fit new O-rings with Kluber Syntheso Glep grease (Porsche Part No. 000.043.204.68).
Install oil-pressure sender.
1. 2.1. Fit oil-pressure sender -2- and tighten two external Torx screws (E10, M6 x 20) -3- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

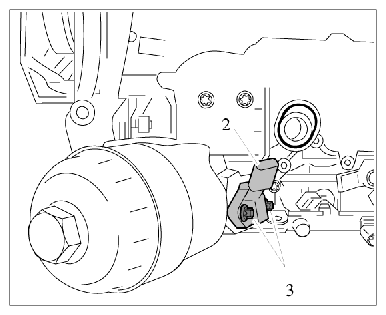

  Fig 1: Identifying Oil-Pressure Sender
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Plug in and secure the cable plug -1- .

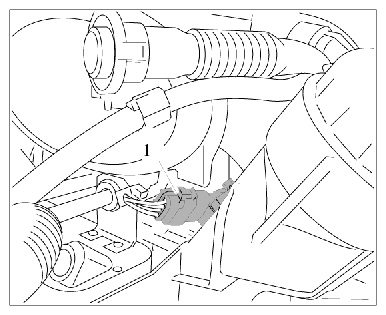

  Fig 2: Identifying Oil-Pressure Sender Cable Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
