Installing Oil-Pressure Sender

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing ring at oil-pressure sender.
Install oil-pressure sender.
1. 2.1. Fit oil-pressure sender -1- with two Torx screws (M6 x 20) and tighten screws.
  The screws are accessible via the intake-air distributor on side 4-6.

  → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 2.2. Connect cable plug to sender.

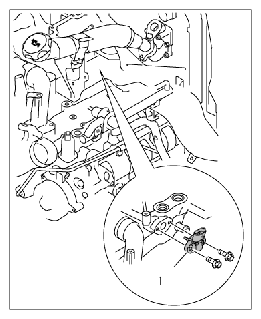

  Fig 1: Identifying Oil-Pressure Sender Installation Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
