Checking Engine Oil Pressure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

WARNING: Hot fluid
  • Danger of scalding

→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information

Only fit test adapter for measuring oil pressure on the engine when engine is cold.

Special Tool Test Adapter 9830 for measuring oil pressure

Fig 1: Identifying Oil Pressure Test Adapter (9830)
G09822042Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Place a cloth under the oil-filter console and on the generator to collect drops of oil.
  2. Loosen oil filter cover using release key 9204  and screw it off.
    1. 2.1. Remove the cover with the oil filter.
    2. 2.2. Remove oil filter and check to see if it contains any chips and other particles of dirt.
    3. 2.3. Replace the oil filter if necessary.
      Fig 2: Loosening/Tightening Oil Filter Cover
      G09822043Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove emerging oil from the oil-filter console.

    Information

    • Check O-rings on the test adapter for damage (cracks/cuts/porosity) and replace them if necessary.
  4. Grease O-rings on the test adapter before fitting it with Kluber Syntheso Glep (Part No. 000.043.204.68).
  5. Insert oil filter into the test adapter.
  6. Screw test adapter with the oil filter into the oil-filter console and secure with an oil filter strap.

    The collar of the test adapter must be perfectly flush with the oil-filter console.

  7. Oil pressure tester OP 85 WE 1276 -2-  must be connected to the plug-in coupling on the test adapter -1-  .
    Fig 3: Identifying Engine Oil Pressure Test Adapter
    G09822044Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. PIWIS Tester II 9818  must be connected to the vehicle.
  9. Start the engine and let it run until an engine oil temperature of 90° Celsius is reached.

    → Nominal value: 90°C

    1. 9.1. Check engine oil temperature using the PIWIS Tester.
  10. Check engine oil pressure.
    1. 10.1. Minimum oil pressure at idle speed: → Pressure: min. 1.2 bar
    2. 10.2. Minimum oil pressure at 3000 RPM: → Pressure: min. 4.0 bar
  11. Stop the engine and remove the test adapter.
    1. 11.1. Wait at least five minutes to allow the oil to return.


CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

WARNING: Hot fluid
  • Danger of scalding

→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information

Only fit test adapter for measuring oil pressure on the engine when engine is cold.

Special Tool Test Adapter 9830 for measuring oil pressure

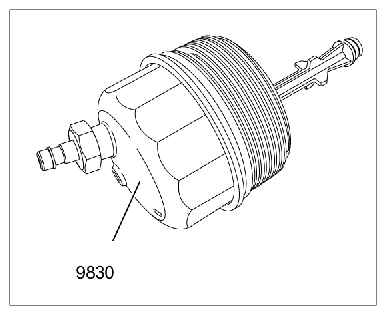

Fig 1: Identifying Oil Pressure Test Adapter (9830)
G09822105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Place a cloth under the oil-filter console and on the generator to collect drops of oil.
  2. Loosen oil filter cover using Release Key 9204  and screw it off.
    1. 2.1. Remove the cover with the oil filter.
    2. 2.2. Remove oil filter and check to see if it contains any chips and other particles of dirt.
    3. 2.3. Replace the oil filter if necessary.

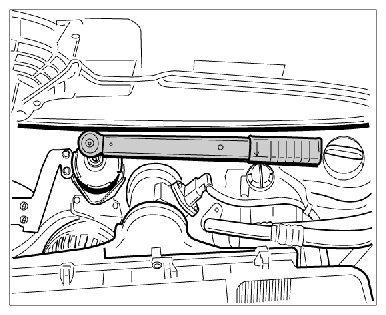

      Fig 2: Loosening/Tightening Oil Filter Cover
      G09822106Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove emerging oil from the oil-filter console.

    Information

    • Check O-rings on the test adapter for damage (cracks/cuts/porosity) and replace them if necessary.
  4. Grease O-rings on the test adapter before fitting it with Kluber Syntheso Glep (Part No. 000.043.204.68).
  5. Insert oil filter into the test adapter.
  6. Screw test adapter with the oil filter into the oil-filter console and secure with an oil filter strap.

    The collar of the test adapter must be perfectly flush with the oil-filter console.

  7. Oil pressure tester OP 85 WE 1276 -2-  must be connected to the plug-in coupling on the test adapter -1-  .

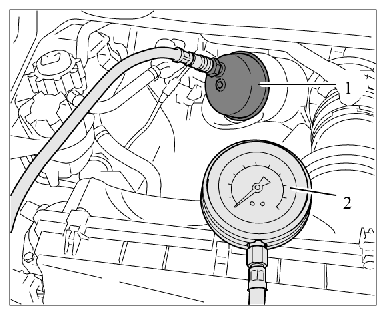

    Fig 3: Identifying Engine Oil Pressure Test Adapter
    G09822107Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. PIWIS Tester II 9818  must be connected to the vehicle.
  9. Start the engine and let it run until an engine oil temperature of 90° Celsius is reached.

    → Nominal value: 90°C

    1. 9.1. Check engine oil temperature using the PIWIS Tester.
  10. Check engine oil pressure.
    1. 10.1. Minimum oil pressure at idle speed: → Pressure: min. 1.2 bar
    2. 10.2. Minimum oil pressure at 3000 RPM: → Pressure: min. 4.0 bar
  11. Stop the engine and remove the test adapter.
    1. 11.1. Wait at least five minutes to allow the oil to return.
