Checking Engine-Oil Level

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The engine oil level can only be checked with the display in the instrument cluster.
Any malfunctions in the oil level gauge show up via a warning in the instrument cluster.

Requirements for correct oil level measurement:

Vehicle is parked horizontally.
Engine is at operating temperature.
Engine is idling.

Start measurement:

Start the engine and allow it to idle until the operating temperature is reached (oil temperature gauge shows approx. 90° C).
Press the lower operating lever at the left forward to display the selection menu.

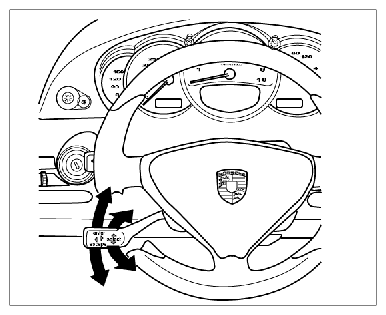

Fig 1: Pressing Operating Lever For On-Board Computer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use the operating lever to select the menu item OIL .

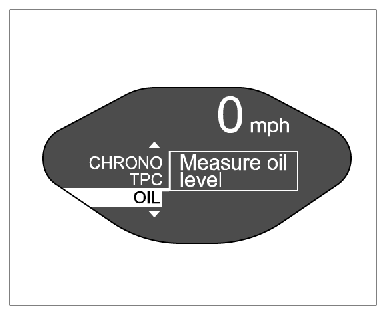

Fig 2: Display - Oil Measurement Menu Item Screen
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The waiting time for the oil level measurement is indicated by a countdown time display and cycling segments on the oil level gauge.
Start the measurement by pressing the operating lever forward.

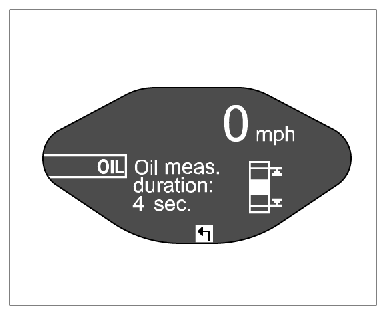

Fig 3: Display - Oil Level Measurement Duration Screen
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The oil level must be between the Min and Max markings.
- Correct the engine-oil level if necessary and check it again.
The oil level can be read off from the segment display once the measurement is complete (waiting time is over).
1. 5.1. The permitted oil level is between the Min and Max markings.

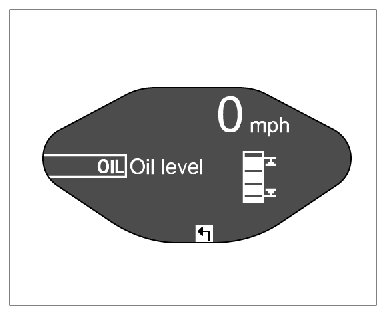

  Fig 4: Display - Oil Level Indicator Screen
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect oil level
- Risk of damage to engine or catalytic converter
→ Check the oil level regularly.

→ The oil level must not fall below the Minimum marking or rise above the Maximum marking.

→ Only use engine oil approved by Porsche.

Information
- If the oil level drops below the minimum marking, the segment below starts flashing.
- The difference between the Min and Max markings is approx. 1.5 liters, i.e. one segment corresponds to approx. 0.5 liters of oil.
- Never top up engine oil above the Max marking.
The minimum oil level is reached when only the lowest segment on the oil level indicator is filled.
1. 6.1. Fill in new engine oil immediately!
If the lowest segment is flashing, the oil level has already fallen below the Min marking.
1. 7.1. Fill in new engine oil immediately!

  Fig 5: Display - Oil Level Below Min Marking Screen
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
