Additional Instructions For Fitting The Inner Panels

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

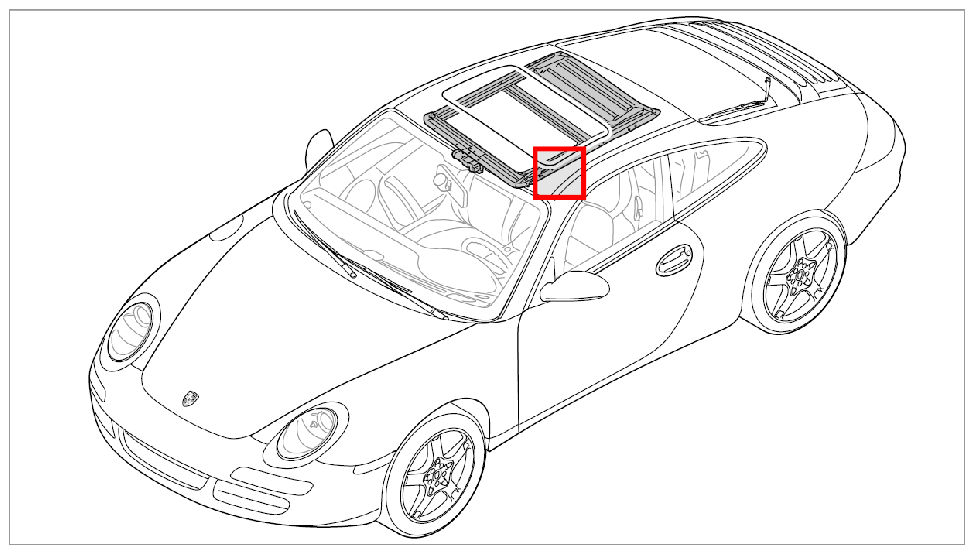

Fig 1: Identifying Slide/Tilt Sunroof Trim Installation Position

G09829392

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The inner panels must be removed or replaced if the sliding roof panel and slide/tilt sunroof trim is removed and the gate of the roof frame is extended (tilting position).

Press the sides of the inner panel into the sliding roof frame. Check function by sliding longitudinally.

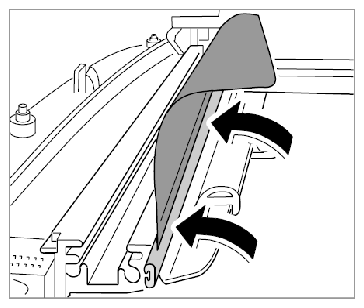

Fig 2: Installing Inner Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
