Removing Mounting Saddle And Pivot Bearing For Sun Visor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

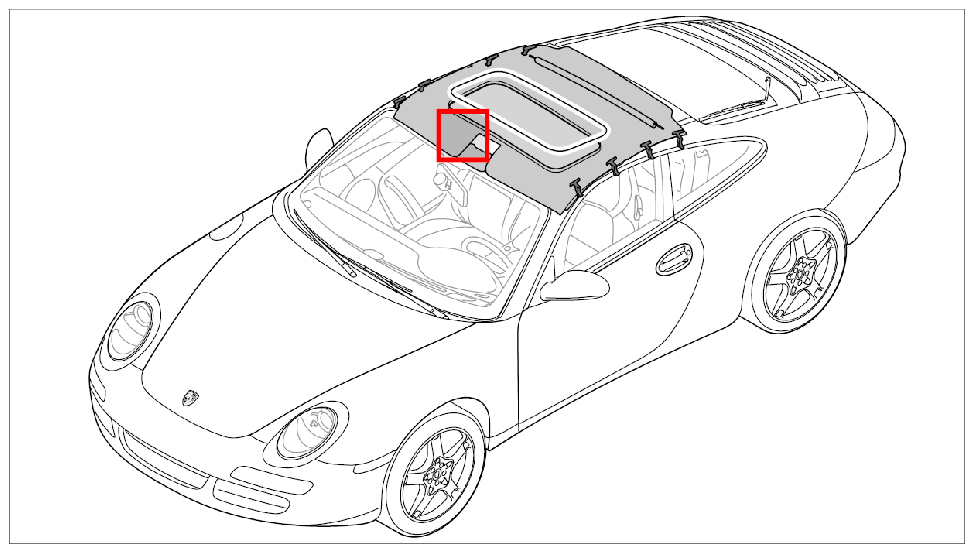

Fig 1: Identifying Headliner Installation Position
G09829358Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip cap on the mounting saddle -1-  with a screwdriver and open -arrow A-  .

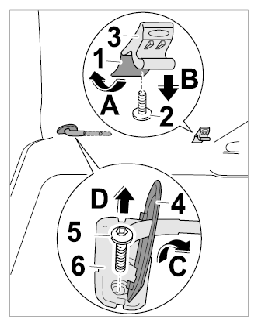

    Fig 2: Removing Mounting Saddle And Pivot Bearing
    G09829359Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -2-  and remove mounting saddle -3- -arrow B-  .
  3. Carefully insert a screwdriver between headliner and pivot bearing and release cover -4- -arrow C-  .
  4. Unscrew fastening screw -5-  and remove pivot bearing -6- -arrow D-  .
