Removing Cover For Motor For Sliding Roof

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off ignition and remove ignition key.
  2. Using a small screwdriver, carefully unclip and remove the cover for the fastening screws at the openings -arrows-  provided.

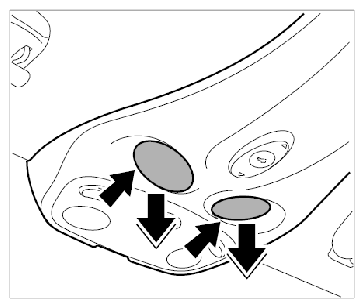

    Fig 1: Unclipping Cover For Fastening Screws
    G09829353Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew the two fastening screws.

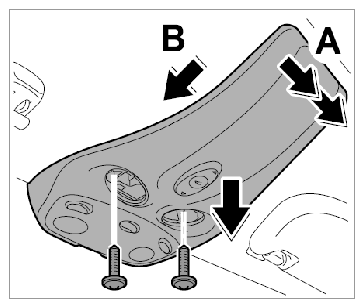

    Fig 2: Unclipping Cover For Motor For Sliding Roof
    G09829354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unclip cover for motor for sliding roof at the rear to the left and right -arrows A-  and push it out to the front towards the windscreen -arrow B-  .
  5. Release connectors at sliding roof switch and at the interior light -arrows a-  and remove them. Remove cover for motor for sliding roof.

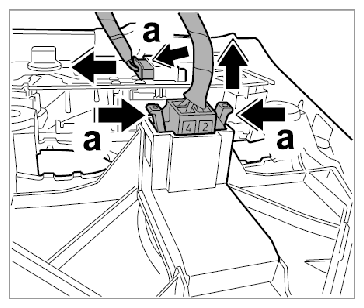

    Fig 3: Removing Connectors At Sliding Roof Switch And Interior Light
    G09829355Courtesy of PORSCHE CARS NORTH AMERICA, INC.
