Installing Mounting Saddle And Pivot Bearing For Sun Visor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

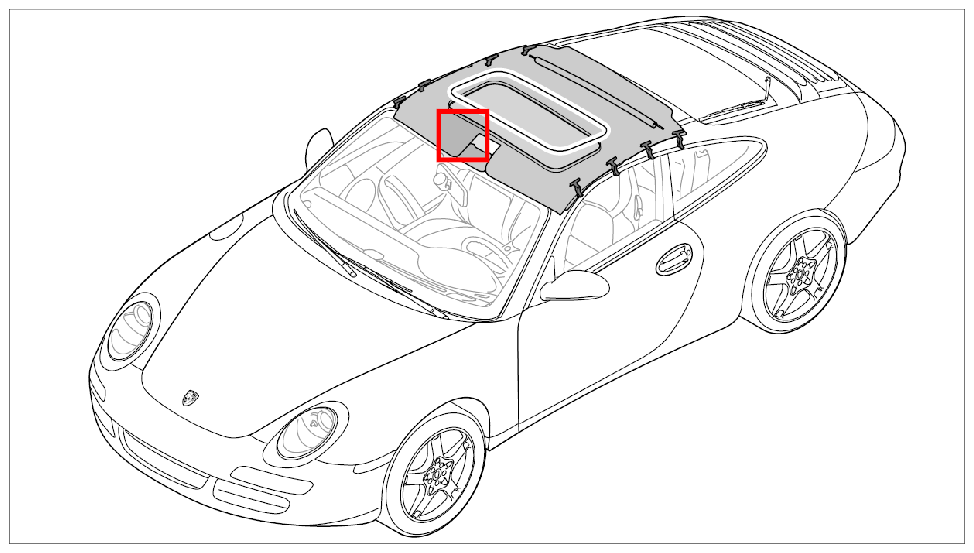

Fig 1: Identifying Headliner Installation Position
G09829373Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press in pivot bearing -6-  until it clicks into place -arrow A-  and tighten with fastening screw -5-  . Tightening screw → Tightening torque: 5 Nm (3.5 ft. lb.) +0.5 Nm (+0.5 ft. lb.)

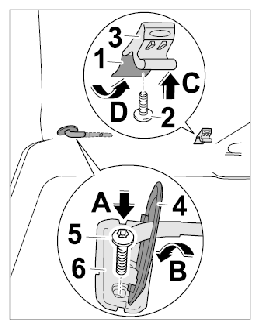

    Fig 2: Installing Mounting Saddle And Pivot Bearing
    G09829374Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press in cover for pivot bearing -4- -arrow B-  .
  3. Position mounting saddle -3-  at the top on the roof liner -arrow C-  and secure using the fastening screw -2-  . Tightening torque → Tightening torque: 2.5 Nm (2 ft. lb.) +0.5 Nm (+0.5 ft. lb.)
  4. Press in cap -1-  on mounting saddle -arrow D-  .
