Installing Cover For Sunroof Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

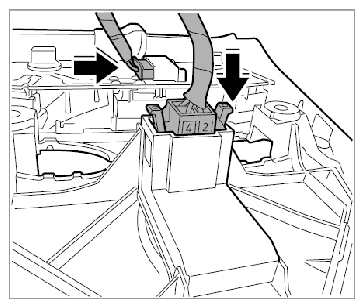

  1. Position cover for sunroof motor. Plug in the connectors on the interior light and the sunroof switch until they are felt to engage.
    Fig 1: Plugging In Connectors On Interior Light And Sunroof Switch
    G09829377Courtesy of PORSCHE CARS NORTH AMERICA, INC.

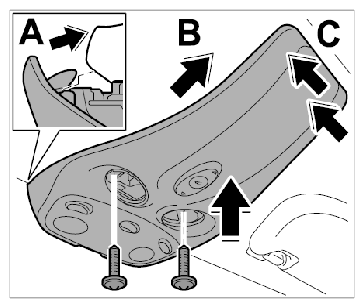

  2. Using the clips, engage cover for sunroof motor on roof frame -arrow A-  , push back towards sunroof -arrow B-  and clip in at the rear to the left and right -arrows C-  .
    Fig 2: Clipping In Cover Of Sunroof Motor
    G09829378Courtesy of PORSCHE CARS NORTH AMERICA, INC.

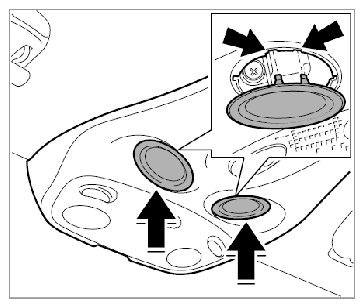

  3. Insert cover of fastening screws into the mounts on the sunroof motor cover -arrows-  and clip it in.
    Fig 3: Clipping In Cover For Fastening Screws
    G09829379Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Switch on ignition and check that sunroof switch and interior light are working.
