Removing Front Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

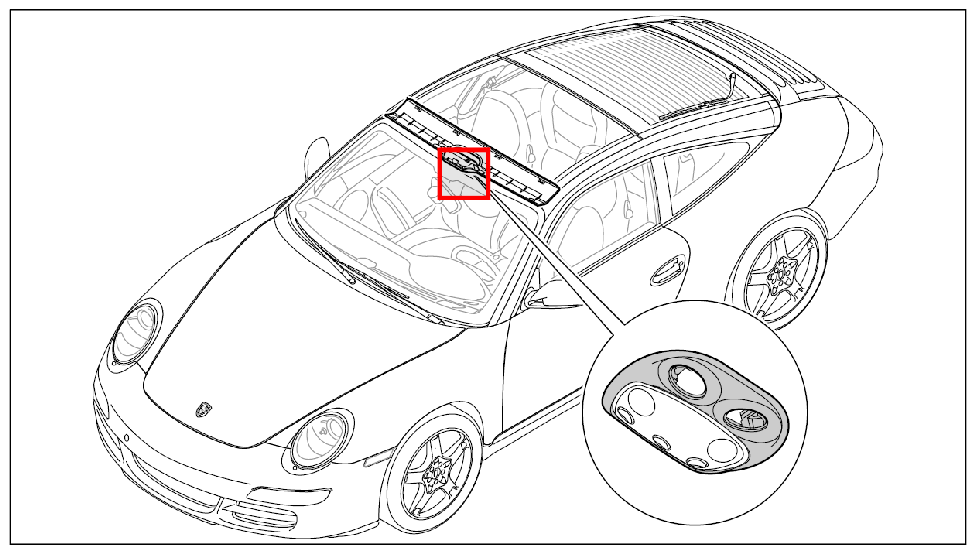

Fig 1: Identifying Front Trim Panel Installation Position
G09829340Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove front trim panel.
    1. 1.1. Unclip covers -1-  on the front trim panel -3-  .
    2. 1.2. Unscrew fastening screws -2-  and remove front trim panel -3-  in a downward direction -Arrow-  until the connector for the interior light -4-  is accessible.
    3. 1.3. Release connector for interior light -4-  (-Arrow A-  ) and pull off connector -Arrow B-  .
    4. 1.4. Remove front trim panel -3-  .

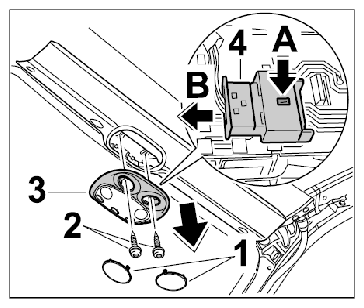

      Fig 2: Removing Front Trim Panel
      G09829341Courtesy of PORSCHE CARS NORTH AMERICA, INC.
