Removing Trim Panel For Roll-Over Protection

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

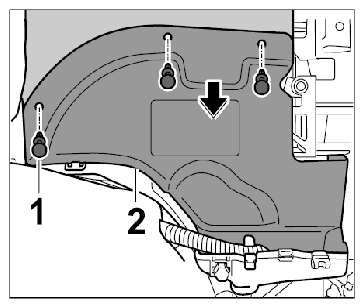

  1. Press out fixing clips -1-  close to the splash guard -2-  (-arrow-  ).
    Fig 1: Loosening Trim Panel
    G09829332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

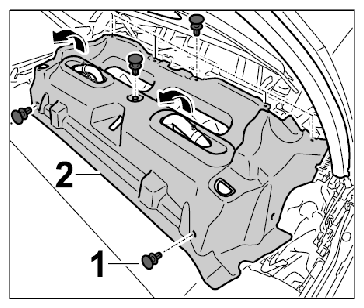

  2. Press out fixing clips -1-  and remove trim panel for roll-over protection -2-  towards the rear with the help of another person -arrows-  .
    Fig 2: Removing Trim Panel
    G09829333Courtesy of PORSCHE CARS NORTH AMERICA, INC.
