Sticking On Protective Film

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

For the next steps, the template drawing must be printed out 1:1 and used as a template.

The template drawing is stored as "Protective film template" in repair group 7081.

Cut out protective film (997.551.441.00 ) according to the template and the relevant vehicle side (left or right).

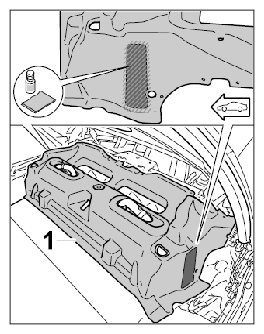

Clean bonding surfaces on the trim panel for the roll-over bar -1- with isopropyl.

Fig 1: Cleaning Bonding Surfaces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

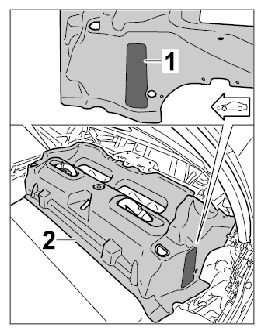

Align the protective film -1- at a distance of 5 mm from the bore all the way around and stick it onto the trim panel -2- .

Fig 2: Sticking On Protective Film
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
