Pre-Fitting Pocket On Roll-Over Protection Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use the center markings on the pocket and on the front and rear trim panel as a guide when positioning the pocket.

  1. Fit the front pocket -arrow A-  and press it on firmly.

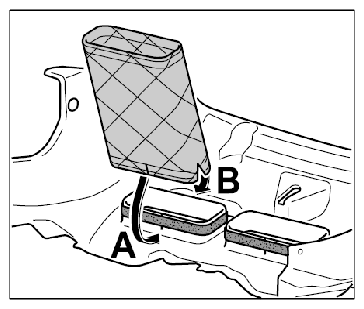

    Fig 1: Fitting Front Pocket
    G09829334Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Slip on the rear pocket -arrow B-  and press it on firmly.

    Fleece must not be visible after fitting the pocket.
