Reworking Rear Side Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Release the rear backrest and fold it forward.
Unscrew rear seat backrest locking pin -1- and remove the collar -2- (-arrow- ).

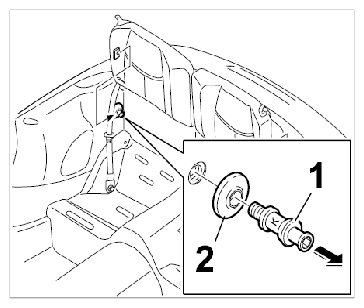

Fig 1: Removing Collar And Rear Seat Backrest Locking Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean the surface where the collar comes into contact with the side trim panel.

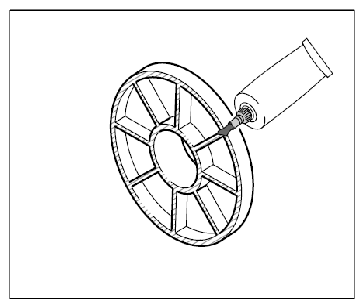

Fig 2: Identifying Side Trim Panel Collar Grease Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grease the surface of the collar where it comes into contact with the side trim panel with Krytox (→ Fig 2).
Insert rear seat backrest locking pin -1- together with the collar -2- (-arrow- ) and tighten securely. → Tightening torque: 35 Nm (26 ft. lb.) +2 Nm (+1.5 ft. lb.) -3 Nm (-2 ft. lb.)

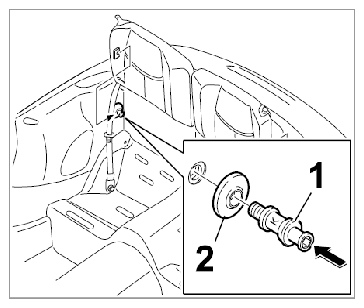

Fig 3: Inserting Rear Seat Backrest Locking Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear backrest up and lock it.
