Removing Trim Panel For Mirror Triangle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

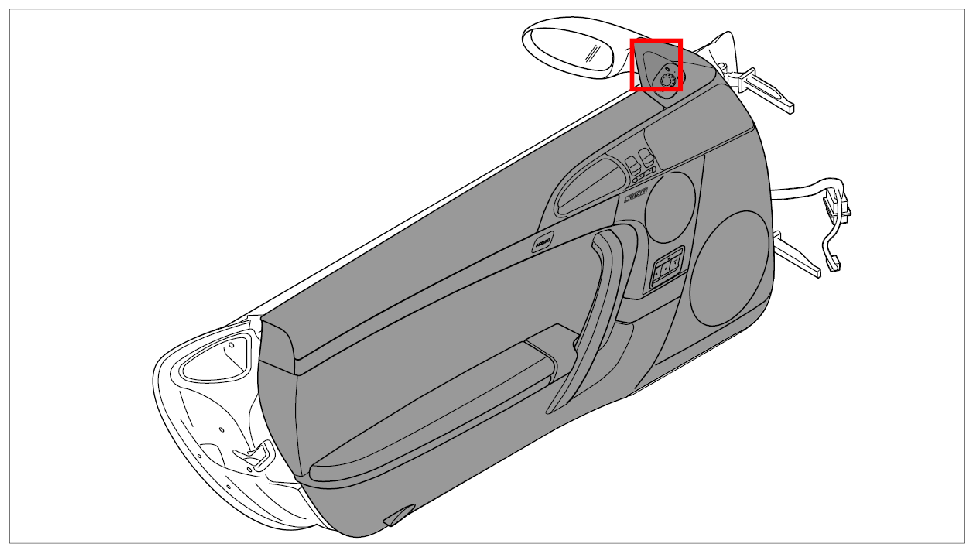

Fig 1: Overview Of Door Panel
G09829298Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Carefully lever out trim panel for mirror triangle -1-  using a plastic wedge -arrow A-  and pull upwards -arrow B-  .

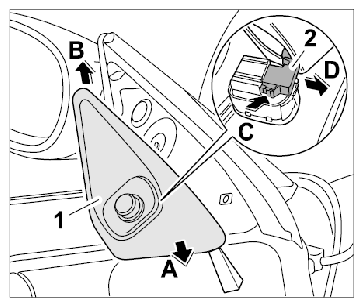

    Fig 2: Removing Trim Panel For Mirror Triangle
    G09829299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric plug connection -2-  (-arrow C-  ) and pull off connector -2-  (-arrow D-  ).
  3. Remove trim panel for mirror triangle -1-  .
