Installing Trim Panel For Mirror Triangle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

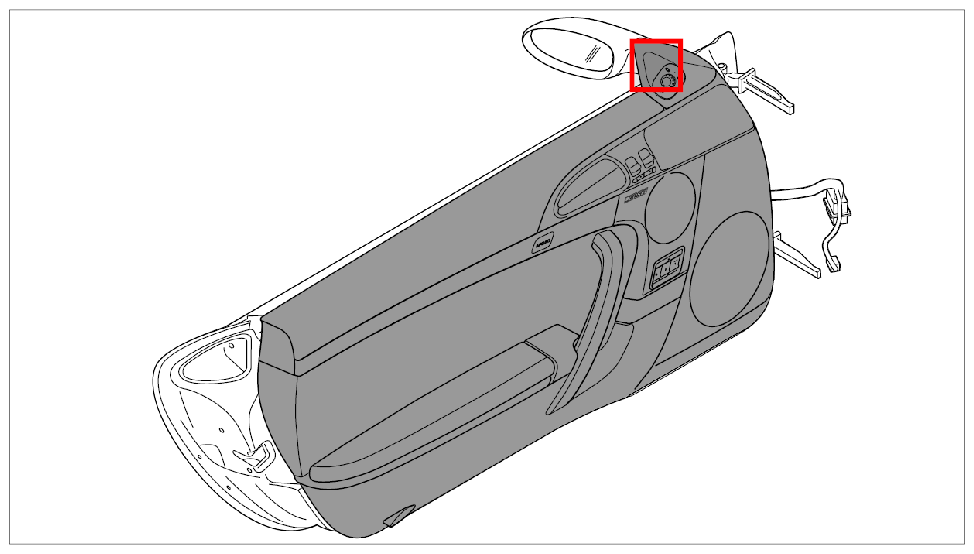

Fig 1: Overview Of Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock the electric plug connection -2- until it engages securely.

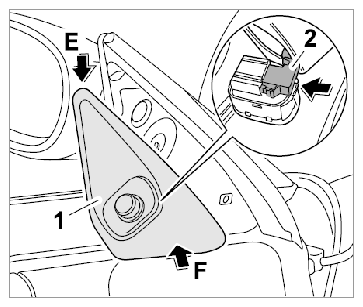

Fig 2: Installing Trim Panel For Mirror Triangle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hook the cover -1- into the door triangle from above -arrow E- and press into the fastening clips on the underside -arrow F- until it engages securely.
