Removing Lid For Oddments Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

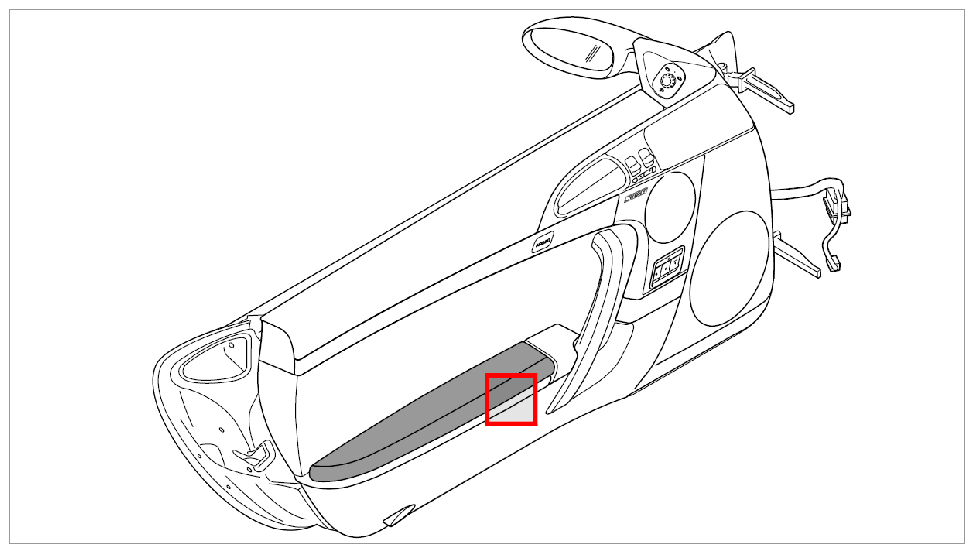

Fig 1: Overview Of Oddments Tray Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

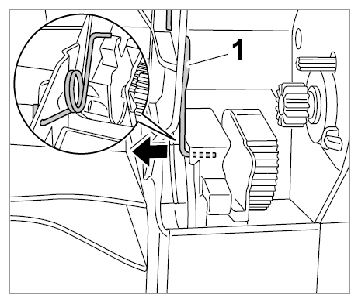

Disengage spring -1- from the guide mechanism using a suitable pliers.

Fig 2: Disengaging Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

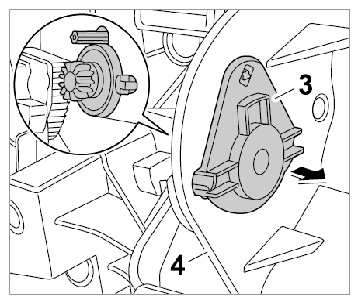

Unclip damper -3- from the door trim panel -4- .

Fig 3: Unclipping Shock Absorber
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

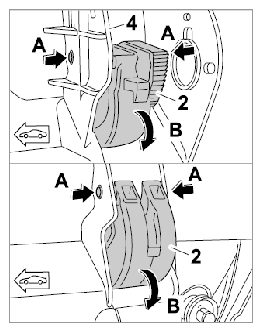

Press guide mechanism together at the left and right -2- using a suitable pliers -Arrow A- and disengage it from the door trim panel -4- (-Arrow B- ).

Fig 4: Disengaging Guide Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
