Installing Lid For Oddments Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

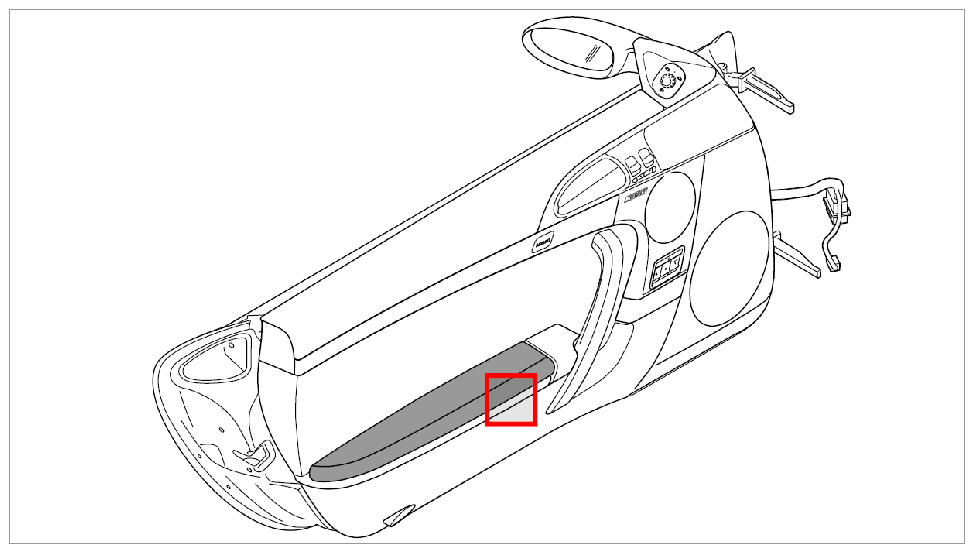

Fig 1: Overview Of Oddments Tray Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

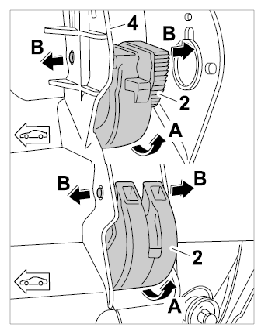

Insert guide mechanism at the left and right -2- into the door trim panel -4- (-Arrow A- ) and engage it -Arrows B- .

Fig 2: Engaging Guide Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

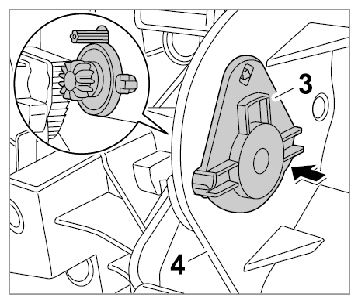

Position damper -3- at the door trim panel -4- and at the guide mechanism and slide it in until it engages at the groove.

Fig 3: Locating Clip In Shock Absorber
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

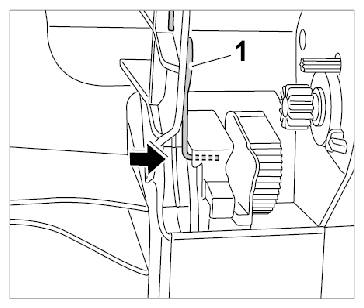

Engage spring -1- on the guide mechanism using a suitable pliers.

Fig 4: Engaging Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
