Disassembling Inner Door Handle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a plastic wedge between the upper part of the handle -1-  and the lower part of the handle -2-  and press off upper part of handle.

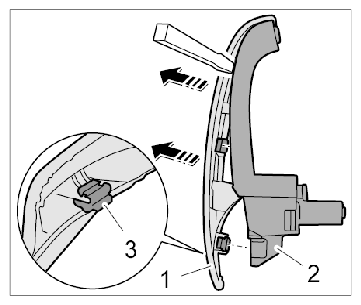

    Fig 1: Inserting Plastic Wedge Between Upper And Lower Part Of Handle
    G09829269Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check clamps -3-  and replace if necessary.
