Installing Inner Door Handle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

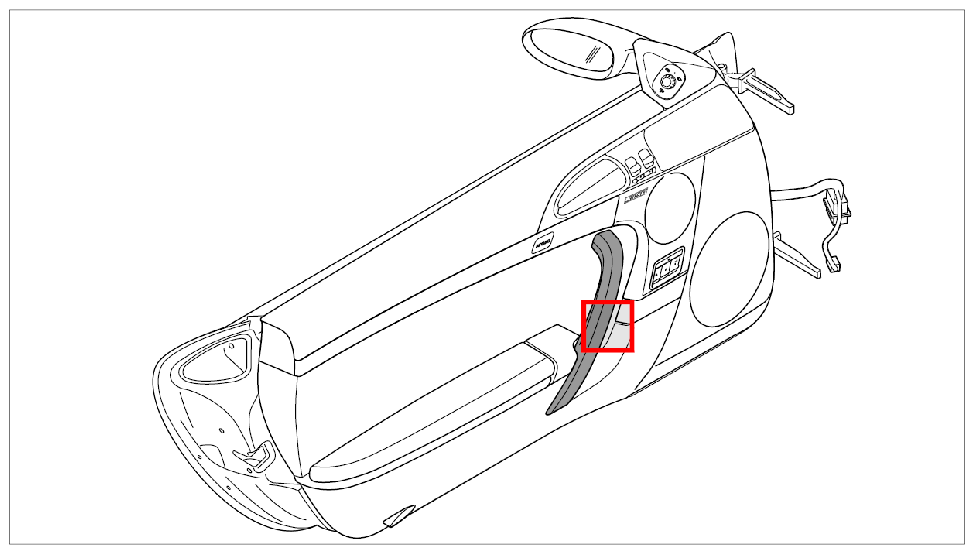

Fig 1: Overview Of Inner Door Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert inner door handle -2- (-Arrow- ).

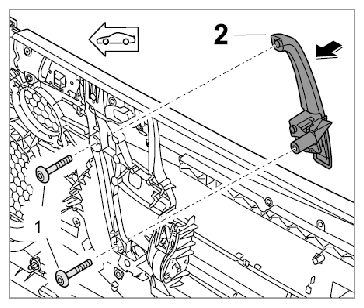

Fig 2: Installing Inner Door Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -1- . → Tightening torque: 7 Nm (5 ft. lb.)
