Releasing Door Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

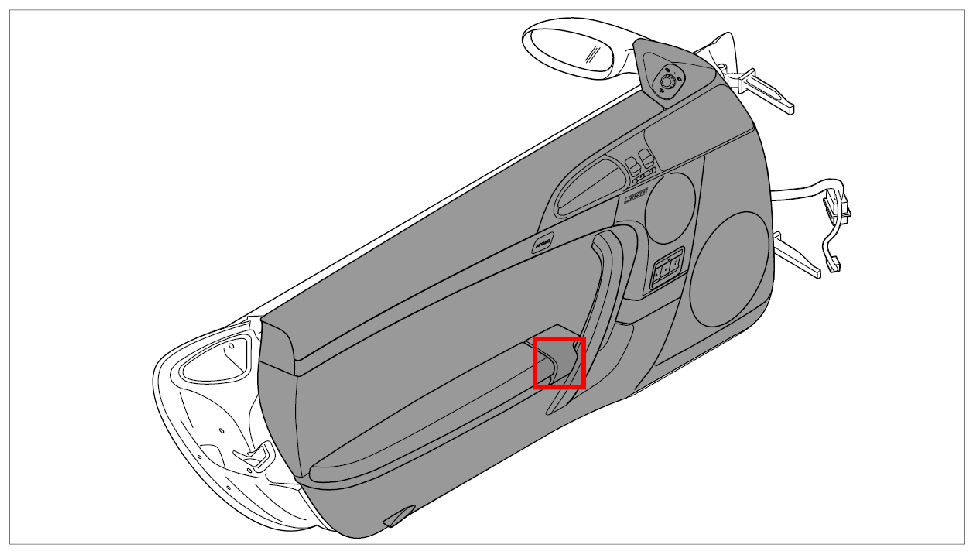

Fig 1: Overview Of Door Panel
G09829231Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -9-  .

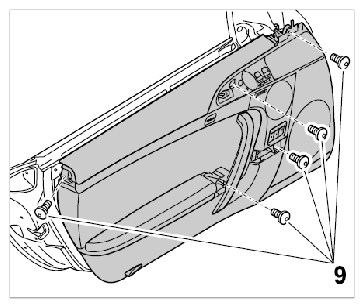

    Fig 2: Releasing Door Panel
    G09829232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    The plastic material in the door trim panel becomes brittle at temperatures below 0 degrees. Before starting work, ensure that the vehicle has adapted to the temperature in the workshop.

    Information

    Unclip fixing clips on the door trim panel -10-  from the door sub-frame in the specified sequence -a to i-  .

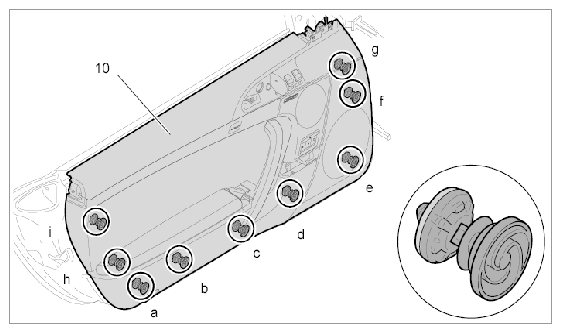

    Fig 3: Unclipping Fixing Clips On Door Trim Panel
    G09829233Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove door panel.

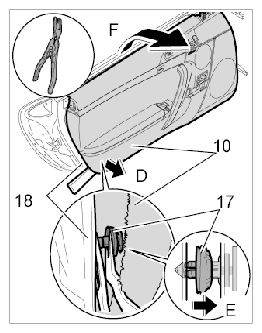

    Fig 4: Removing Door Panel
    G09829234Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. On the door, affix adhesive tape to the area around the door panel -10-  .
    2. 2.2. Insert a plastic wedge between the door panel -10-  and door sub-frame -18-  .
    3. 2.3. Carefully push the door panel -10-  to one side -arrow D-  as far as necessary in order to insert the removal pliers 9760  between the door sub-frame -18-  and fixing clip -17-  .
    4. 2.4. Unclip the door panel -10-  at all fixing clips -17-  using the removal pliers 9760  from the door subframe -18-  (-arrow E-  ) and unhook it from the sealing channel -arrow F-  .
