Replacing Fixing Clips

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

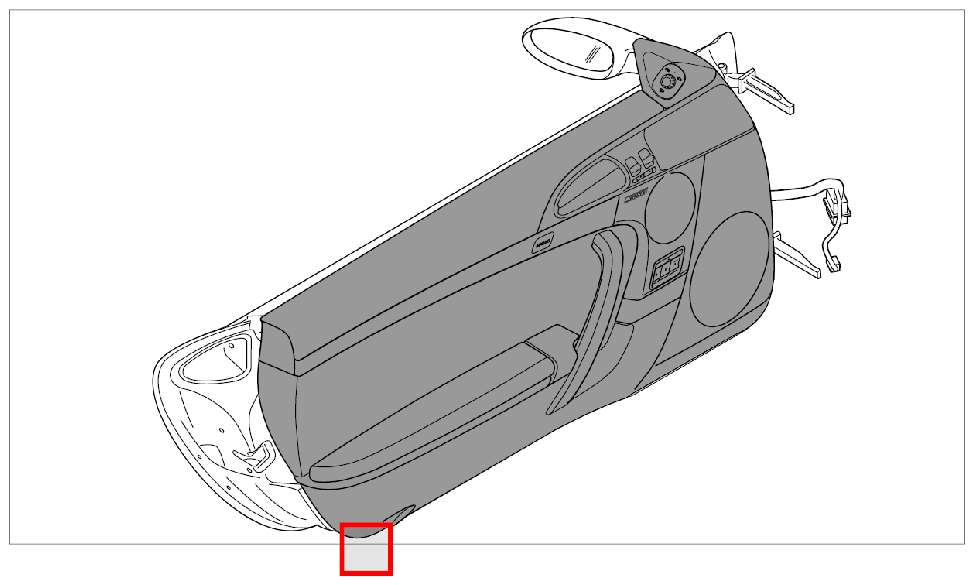

Fig 1: Overview Of Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The fixing clips must always be replaced after the door trim panel has been removed.

Information

The fixing clips can have two different positions (loosened and spread). Before installing the door trim panel, the fixing clips must be loosened fully because otherwise the door trim panel may not engage fully in the door sub-frame, possibly resulting in noises. In order to release the fixing clips, the spreaders must be moved to the front position by hand or using the removal pliers 9760.

Check that the new → FIXING CLIPS -17- are at the front position. Loosen the fixing clips -17- if necessary.

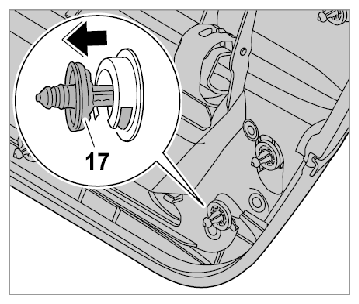

Fig 2: Loosening Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push new fixing clips -17- into the door panel.
