Locking Electric Plug Connections

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Overview Of Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

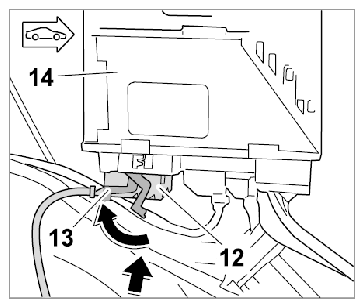

Connect electric plug connection -12- to the control unit -14- and lock it by pressing the locking lever -13- .

Fig 2: Locking Plug Connection On Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

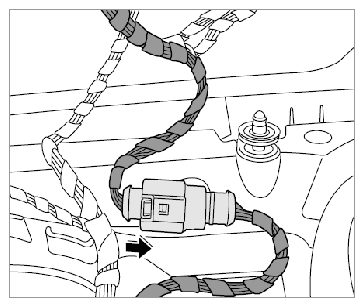

Lock the electric plug connection -arrow- until it engages securely.

Fig 3: Locking Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
