Removing Trim Strip For Dashboard (On Driver's Side)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

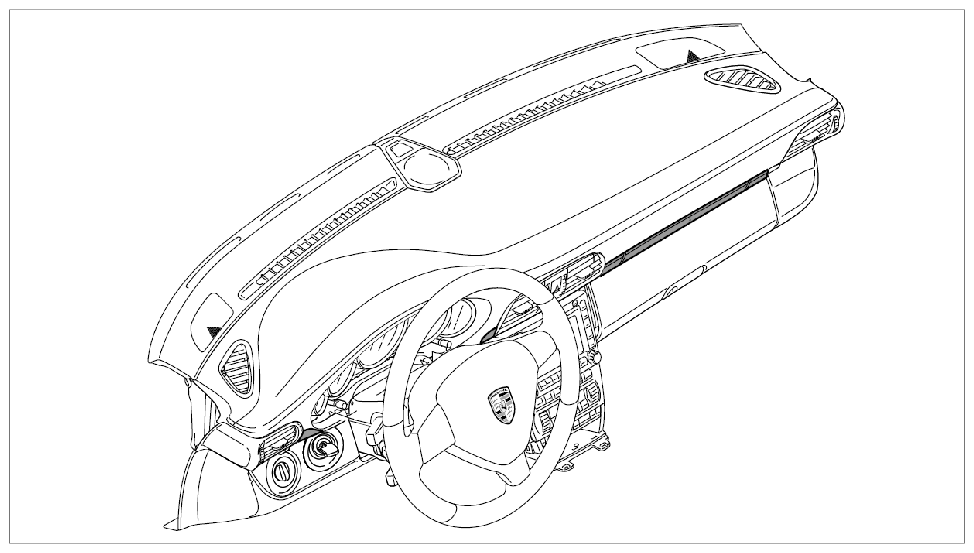

Fig 1: Identifying Trim Strip For Dashboard Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert a plastic wedge between the dashboard and left trim strip -1- and unclip trim strip.

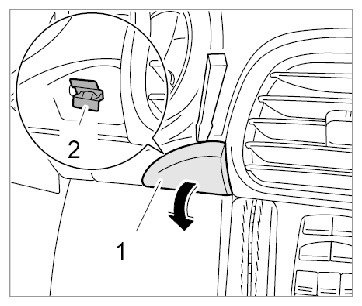

Fig 2: Removing Left Trim Strip (Driver Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check clamp -2- and replace if necessary.
Insert a plastic wedge between the dashboard and right trim strip -1- and unclip trim strip.

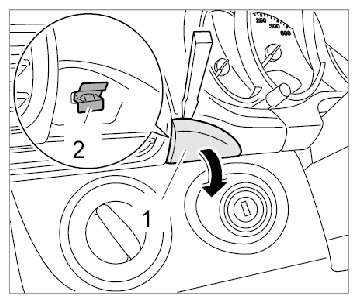

Fig 3: Removing Right Trim Strip (Driver Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check clamp -2- and replace if necessary.
