Removing Trim Strip For Dashboard (Cup Holder)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the glove compartment.

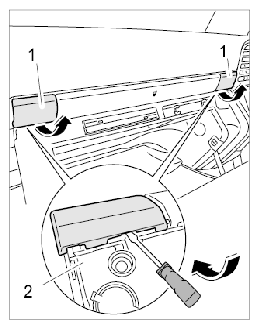

  2. Insert a screwdriver between the cup holder -2-  and left/right trim strip -1-  and unclip cover carefully in -direction of arrow-  .
    Fig 1: Installing Left/Right Trim Strip (Cup Holder)
    G09829218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

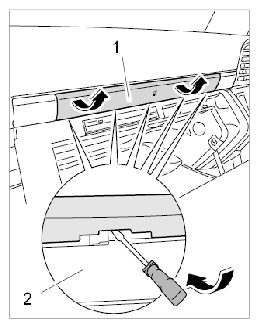

  3. Insert a screwdriver between the cup holder -2-  and center trim strip -1-  and unclip cover carefully in -direction of arrow-  .
    Fig 2: Removing Center Trim Strip (Cup Holder)
    G09829219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
